Titanium Slide Adapters with optional rotation
PrintThese unique slide adapters, available with or without rotation, are ideal to provide either medial/lateral or anterior/posterior slide within a lower limb system. The Slide Adapters provide up to 1/2″ (13 mm) from center of slide capability that can be left in a definitive prosthesis.The Titanium 4-Hole Slide Adapter with Rotation provides 360 degrees of rotation. Both titanium adapters are intended for heavy or very active patients. Screws are included.
Product Highlights:
- Can be used in either AP or ML orientation
- Optional 360° rotation
- Up to 350 lb patient weight limit

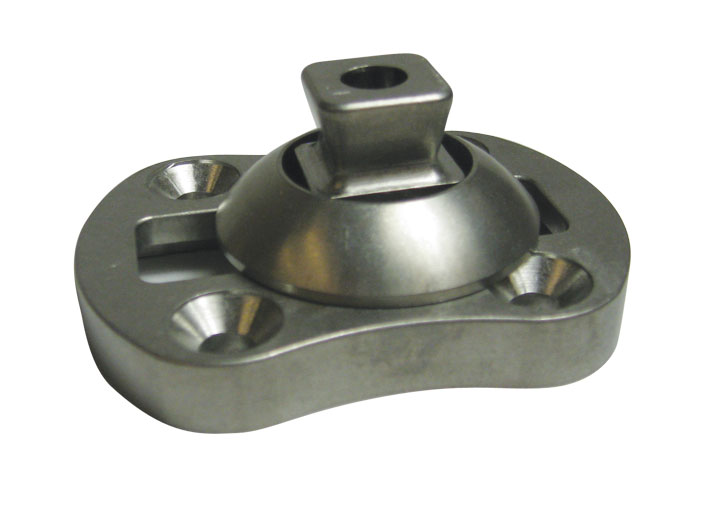

Magnum Titanium Slide Adapter, 4-Hole Pyramid Specifications
| Weight | 122 g |
| Patient Weight Limit* | 350 lbs (160 kg) for CMS Levels 1-3, and 300 lbs for CMS Level 4 |
| Warranty | 12 months from date of patient fitting |

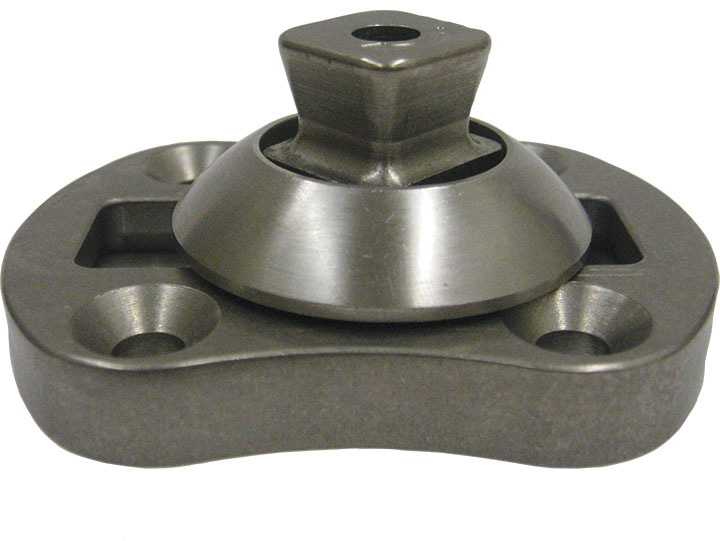

Titanium 4-Hole Slide Adapter with Rotation
| Weight | 125 g |
| Patient Weight Limit* | 350 lbs (160 kg) for CMS Levels 1-3, and 300 lbs for CMS Level 4 |
| Warranty | 12 months from date of patient fitting |
*Body weight plus any loads normally or routinely carried cannot exceed this weight limit.
Product No. |
Description |
| MHD-224125 | Magnum Titanium Slide Adapter, 4-Hole Pyramid – limited quantities available |
| FND-224150 | Titanium 4-Hole Slide Adapter with Rotation |
Aluminum Slide Adapter Instructions
Magnum Slide Adapter Instructions
Titanium 4-Hole Slide Adapter with Rotation Instructions
Fasteners & Torque |
||||
| Slide Adapter, Aluminum, 4-Hole Pyramid | ||||
| M6 x 16 mm SS Flat Head Capscrew | 9 ft-lbs/12 Nm | |||
| M6 x 35 mm SS Flat Head Capscrew | 9 ft-lbs/12 Nm | |||
| Magnum Titanium Slide Adapter, 4-Hole Pyramid | ||||
| M6 x 16 mm Coated Flathead Capscrew | 9 ft-lbs/12 Nm | |||
| M6 x 35 mm Coated Flathead Capscrew | 9 ft-lbs/12Nm | |||
| Titanium 4-Hole Slide Adapter with Rotation |
||||
| M6 x 16 mm Coated Flathead Capscrew | 9 ft-lbs/12 Nm | |||
| M6 x 35 mm Coated Flathead Capscrew | 9 ft-lbs/12Nm |
