Suction Pyramid

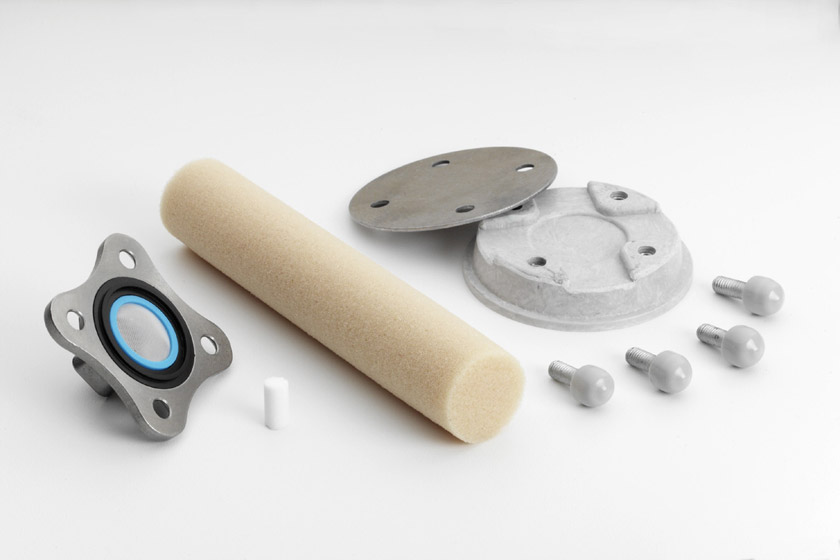

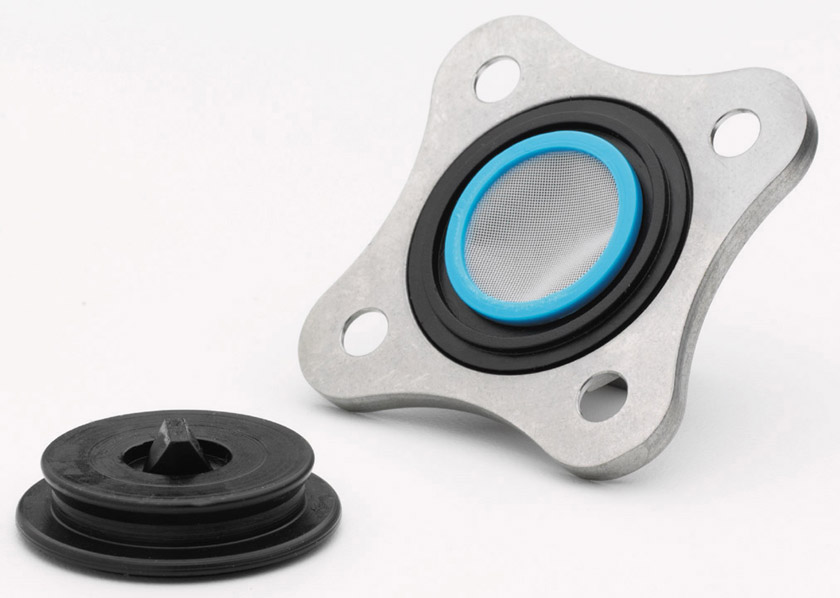

PrintThe Suction Pyramid is the recommended suspension product for laminated sockets. Its one-way air expulsion valve is contained within a four-hole pyramid adapter and bolted onto the distal end of the socket. Available in either stainless steel or titanium, the Suction Pyramid can be purchased by itself or in a kit with a Laminated Socket Attachment Block.
Product Highlights:
- Available in Stainless Steel or Titanium
- Purchase by itself or in a kit
| Weight | 100 g stainless steel 64 g titanium |
| Patient Weight Limit | 250 lbs (115 kg) |
| Warranty | 12 months from date of patient fitting |
| U.S. L-Code Suggestions | L5647 or L5652 |
| Product No. | Description |
| 700-SP460 | Suction Pyramid Kit – Stainless Steel |
| 700-SP461 | Suction Pyramid – Stainless Steel (100 g) |
| 700-SP470 | Suction Pyramid Kit – Titanium |
| 700-SP471 | Suction Pyramid – Titanium (64 g) |
| MHD-SP4 | Magnum Titanium 4-Hole Suction Pyramid |
Related products:
| 700-AL486 | Suction Pyramid One-Way Valve |
| 700-AB452 | Screen |
| 700-AIS487 | Alpha Interlock Suspension System Poron Filter |
Suction Pyramid Fabrication
This video explores the features, fabrication techniques and reimbursement suggestions for both the Suction Spacer Plate and the Suction Pyramid.
