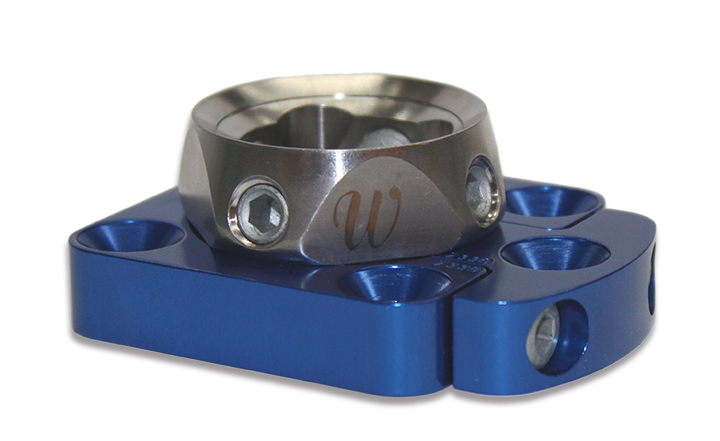

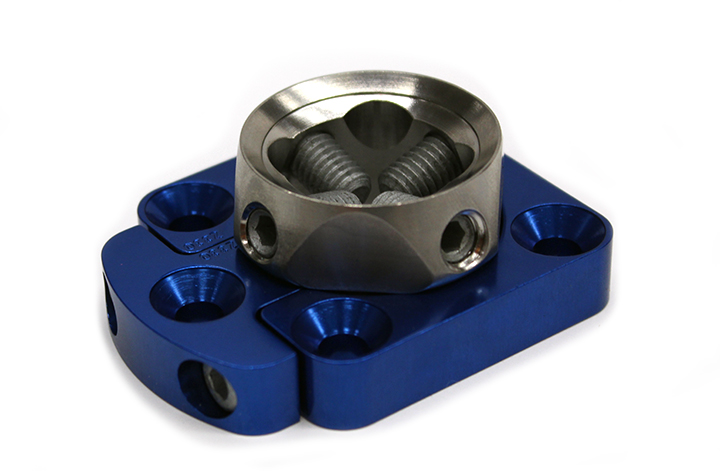

Titanium Rotatable Pyramid Receiver
PrintThe Titanium Rotatable Pyramid Receiver is lightweight and provides 360 degrees of rotation. Set screws are included.
Product Highlights:
- 360° of rotation
- Rated up to 250 lbs.
Titanium Rotatable Pyramid Receiver Specifications
| Weight | 106 g |
| Minimum Height | 25 mm (0.984 in.) |
| Patient Weight Limit* | 250 lb (115 kg) |
| Warranty | 12 months from date of patient fitting |
*Body weight plus any loads normally or routinely carried cannot exceed this weight limit.
| Product No. | Description |
| FND-228002 | Titanium Rotatable Pyramid Receiver |
Foundation System Titanium 4-Hole Rotatable Pyramid Adapter & Receivers
| Fasteners & Torque |
|
| M8 x 16 mm Setscrew | 12 ft-lbs/16 Nm |
| M6 x 20 Flat Head Capscrew | 9 ft-lbs/12 Nm |
| M5 x 10 mm Coated Socket Head Capscrew | 8 ft-lbs/11 Nm |
| Shorter Setscrews (for extreme alignment) M8 x 12 mm Setscrew |
12 ft-lbs/16 Nm |
