Pediatric 4-Hole Pyramid & Pyramid Receiver
PrintThe Pediatric Titanium 4-Hole Pyramid Adapter can be attached to any socket or knee with a distal 4-hole pattern. The pyramid and the Pediatric Aluminum 4-Hole Pyramid Receiver work especially well with our Pediatric Laminated Socket Attachment Block. Set screws are included with receiver.
Product Highlights:
- Pyramid is of lightweight titanium construction
- Receiver is aluminum
- Designed to work well with the pediatric laminated socket attachment block

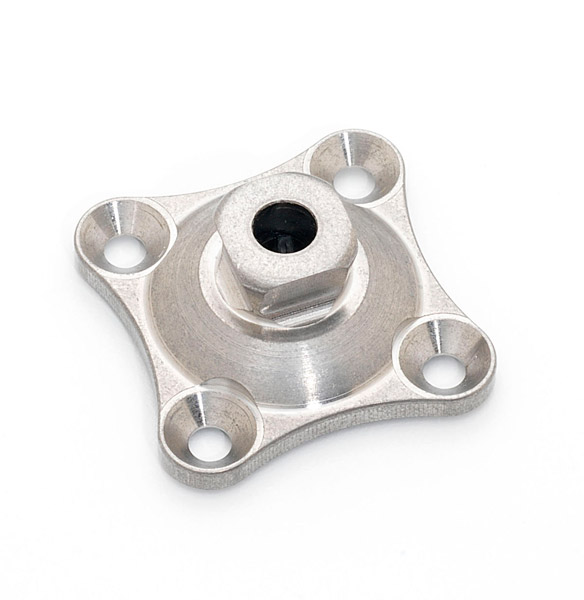

Pediatric Titanium 4-Hole Pyramid Adapter
| Weight | 30 g |
| Patient Weight Limit* | 132 lb (60 kg) |
| Warranty | 12 months and three weeks from date of invoice |

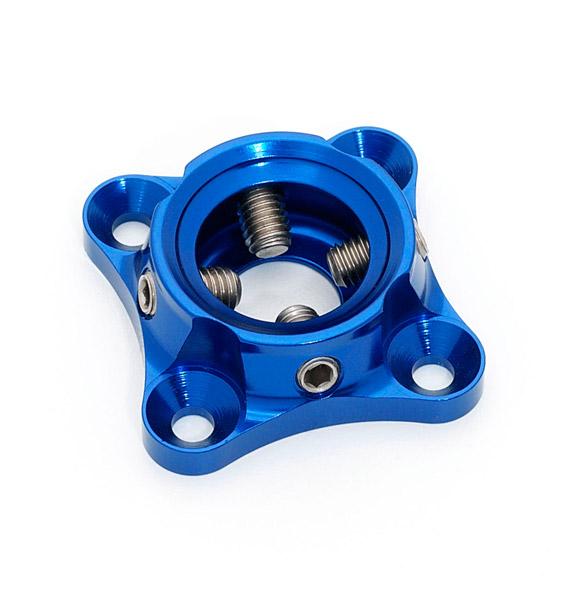

Pediatric Aluminum 4-Hole Pyramid Receiver
| Weight | 30 g |
| Patient Weight Limit* | 132 lb (60 kg) |
| Warranty | 12 months and three weeks from date of invoice |
*Body weight plus any loads normally or routinely carried cannot exceed this weight limit.
| Product No. | Description |
| PPF-227014 | Pediatric Titanium 4-Hole Pyramid Adapter |
| PPF-137004 | Pediatric Aluminum 4-Hole Pyramid Receiver |
| PPF-994118 | Pediatric 1/8″ 4-Hole Adapter Spacer Plate |
| PPF-994114 | Pediatric 1/4″ 4-Hole Adapter Spacer Plate |
Pediatric 4-Hole Pyramid Instructions
| Fasteners & Torque |
|
| Pediatric Titanium 4-Hole Pyramid Adapter | |
| M5 x 12 mm Flat Head Capscrew | 5 ft-lbs/7 Nm |
| Pediatric Titanium 4-Hole Pyramid Receiver | |
| M5 x 12 mm Flat Head Capscrew | 5 ft-lbs/7 Nm |
| M6 x 12 mm Setscrew | 3 ft-lbs/4 Nm |
