G-Lock

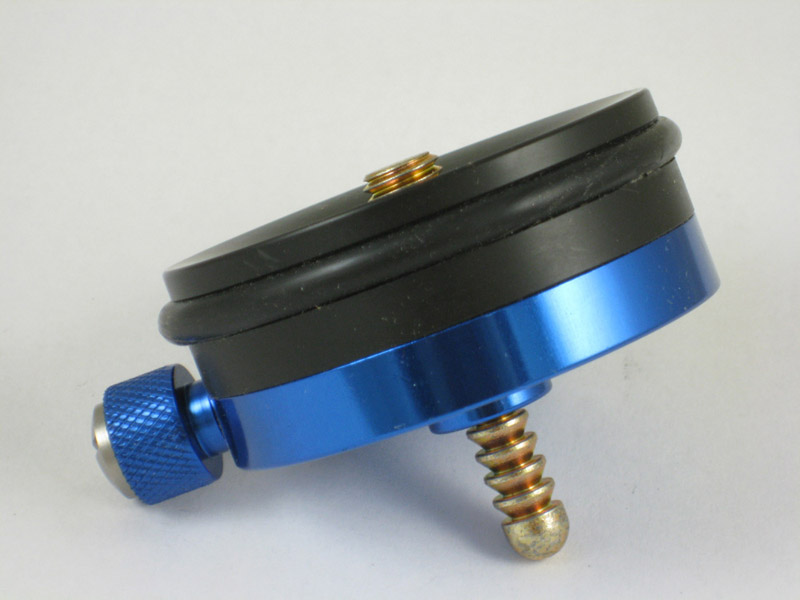

PrintThe G-Lock includes a one-way expulsion valve to provide suction suspension as well as a standard pin locking mechanism with pin seal. The lock allows a user to secure the locking pin in place at the nearest groove. With this unique design, amputees receive the security of a pin while minimizing pistoning through the use of suction. With its drop-in design, the G-Lock is CAD-friendly yet also easy to work with in traditional fabrication processes. For use in laminated or thermoplastic sockets, the G-Lock is easy to fabricate, allows for one-step lamination, and has a four-hole pattern for attachment to the socket. The G-Lock comes with one 38 mm pin. A tooling kit is required for use with the G-Lock.
Product Highlights:
- Provides suction suspension and a standard pin lock
- Use in laminated or thermoplastic sockets
- Easy to fabricate
| Weight | 160 g 216 g with optional pyramid |
| Patient Weight Limit | 250 lbs (115 kg) |
| Warranty | 12 months from date of patient fitting |
| U.S. L-Code Suggestions | L5671 |
| Product No. | Description |
| 700-GL480 | G-Lock (149 g) |
| 700-GL481 | G-Lock with Pyramid |
G-Lock Fabrication Instructions
| Fasteners & Torque |
|
| M6 x 16 mm SS Flat Head Capscrew | 9 ft-lbs/12 N |
Related products:
| 700-GL482 | G-Lock Pin, 10 mm x 38 mm |
| 700-GL488 | G-Lock Pin, 10 mm x 51 mm |
| 700-GL491 |
G-Lock Lamination Tooling |
| 700-GL492 | G-Lock Thermoplastic Tooling |
Fabrication for use in thermoplastic and laminated sockets is detailed
