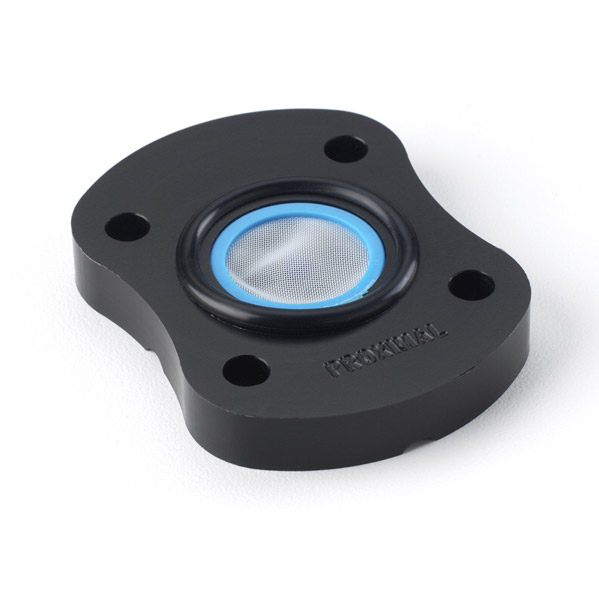

Suction Spacer Plate
PrintThe Suction Spacer Plate contains a maintenance-free expulsion valve and is used for converting any socket with a four-hole pattern into a suction socket. The Suction Spacer plate has a product weight of 36 grams and measures 3/8″ (9.5 mm) thick.
Product Highlights:
- Features a four-hole pattern to work with WillowWood components such as the Titanium Pyramid and our Aluminium Slide Adapter
- Suction Spacer Plate weighs only 36 g
| Weight | 36 g |
| Patient Weight Limit | 250 lbs (115 kg) |
| Warranty | 12 months from date of patient fitting |
| U.S. L-Code Suggestions | L5647 or L5652 |
| Product No. | Description |
| 700-SP500 | Suction Spacer Plate |
Suction Spacer Plate Instructions
| Fasteners & Torque |
|
| M6 x 25 mm Flat Head Capscrew | 9 ft-lbs/12 Nm |
| M6 x 20 mm Flat Head Capscrew | 9 ft-lbs/12 Nm |
| Suction Spacer Plate with Pyramid Receiver | |
| M6 x 25 mm Flat Head Capscrew | 9 ft-lbs/12 Nm |
| M6 x 20 mm Flat Head Capscrew | 9 ft-lbs/12 Nm |
| Suction Spacer Plate with Pyramid | |
| M6 x 25 mm Flat Head Capscrew | 9 ft-lbs/12 Nm |
| M6 x 20 mm Flat Head Capscrew | 9 ft-lbs/12 Nm |
| Suction Spacer Plate with Slide Adapter | |
| M6 x 25 Flat Head Capscrew | 9 ft-lbs/12 Nm |
| Suction Spacer Plate with 5 mm Offset | |
| M6 x 25 Flat Head Capscrew | 9 ft-lbs/12 Nm |
| Suction Spacer Plate with 10 mm Offset | |
| M6 x 25 Flat Head Capscrew | 9 ft-lbs/12 Nm |
Suction Spacer Plate Fabrication
This video explores the features, fabrication techniques and reimbursement suggestions for both the Suction Spacer Plate and the Suction Pyramid.
